How One Line of Code Forced a Full OS Release

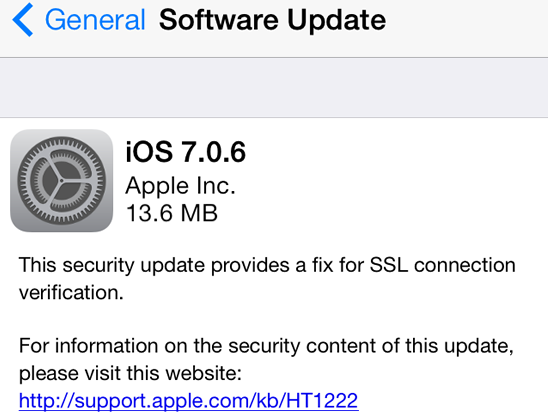

It's not often that Apple 'fesses up about a bug, but the release iOS 7.0.6 came about because somehow an extra line of code got added to a function and broke it. Normally a bug would probably not warrant a complete release, but unfortunately this one-liner broke SSL connection verification. This is the code that checks that the connection is talking to the correct destination and uses SSL and TLS to verify it. You can take a look at the source code of the function on Apple's open source website. This is in C, by the way, not objective-C. It's in the function SSLVerifySignedServerKeyExchange, which starts at line 575. Select the whole webpage and copy it into a text editor that shows lines. Skip down to lines 607 and 608, which look like this:   if ((err = SSLHashMD5.update(&hashCtx, &signedParams)) != 0)             goto fail; Now imagine if line 608 was accidentally duplicated. That was the bug. Just an extra line: goto fail;. This time, of course, there was no error condition to test so it always jumped to the fail label. At this point the variable err (of type OSStatus) would have a zero value, so although the label is meant to be jumped to only when a test fails, there was no failure to kick it off. In C, though, zero is often taken as false and non-zero as true. The value zero is quite often used to mean success while the non-zero value holds the actual error number. That's the case here. So the extra goto meant the code skipped a number of other tests and jumped to the fail: label at line 648. fail:     SSLFreeBuffer(&signedHashes);     SSLFreeBuffer(&hashCtx);     return err; This frees up memory allocated for two blocks of type SSLBuffer and returns err, which has 0 in it and skips all the checks from lines 610-646. The concern that connection verification returns success after only doing a few checks is what led Apple to issue a new version of iOS 7 (and iOS 6 for iPod Touch).

How Could This Happen?

There's a little bit of paranoia that because the NSA knew of vulnerability soon after an earlier iOS 6 release, it must have been instrumental in creating it. How do we know that wasn't the case? I suspect that Apple tests every new release with some clever software looking for vulnerabilities and that's how they pick them up so quickly. Of course, we'll probably never know the truth. More likely is that (a) it was a simple cut-and-paste mistake or (b) merging a branch failed. That seems likeliest. It's believed that Apple uses Git and/or Subversion version control systems as both are supported in Xcode. I know that errors of this type can occur when doing merges in Subversion because another developer broke some code of mine last week doing a merge. Merges are used when, for example, you make a change in an earlier version of code -- say to fix a bug -- and you want later versions to also have the change. Typically you develop in the main branch (known as trunk) of your code, then label all files in the release. Anybody can get back to that release’s version of the files -- even after many years and hundreds or thousands of changes -- because the files were labeled. But a fix that has to be in that version won’t be automatically merged into later releases or the main branch, so you’ll have to manually merge it. That’s when things can go wrong.

Conclusion

A slightly improved code guide style (or adhering to it) might have caught this, as might static analysis which would show that the code after line 608 could never be reached. Guide styles for C-like languages sometimes prescribe that after an if, while or do statement there should be a block, i.e., starting with { and never a single statement. So better code might look like this:   if ((err = SSLHashMD5.update(&hashCtx, &signedParams)) != 0) {               goto fail; } And possibly the merge if it went wrong could have introduced a compile error.
